Introduction

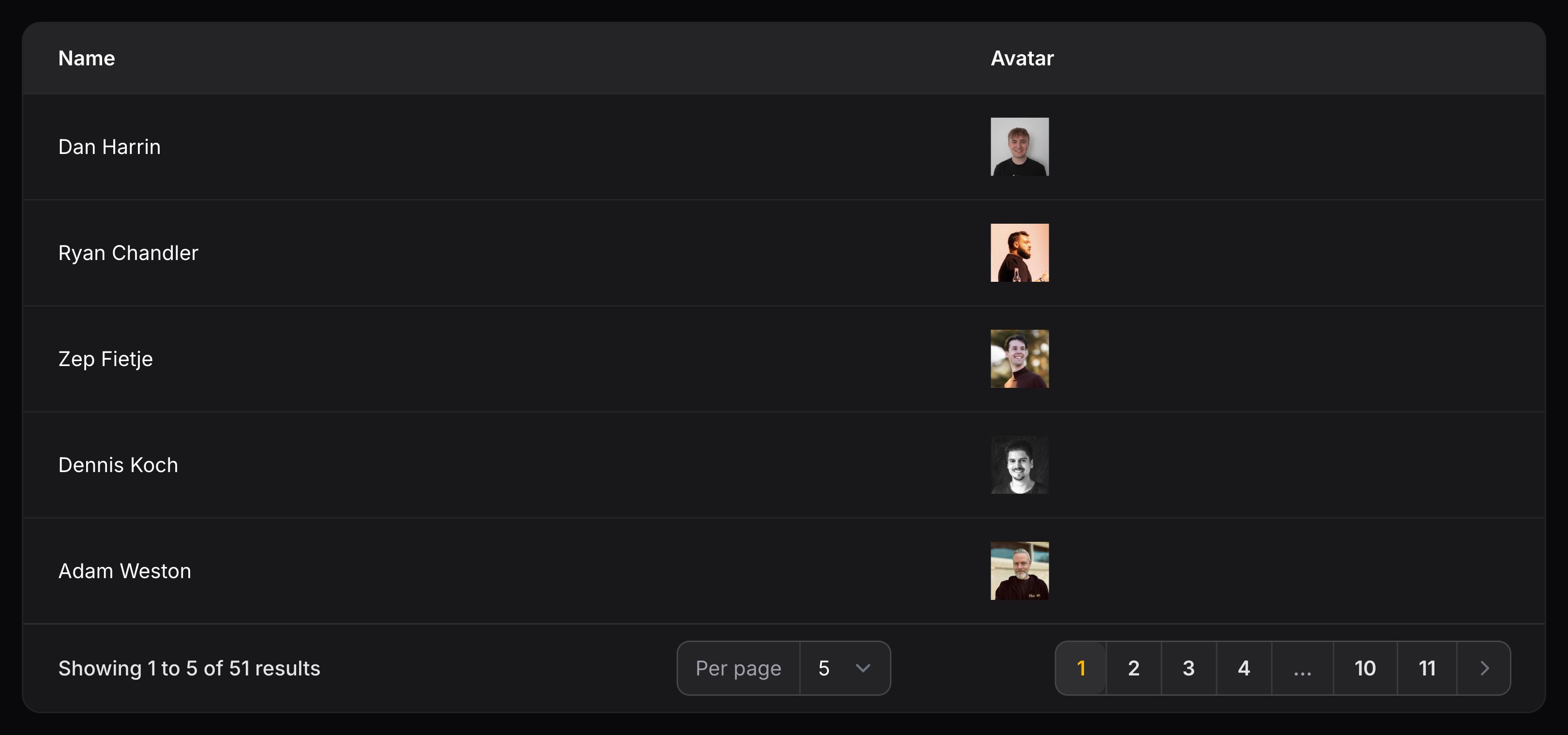

Tables can render images, based on the path in the state of the column:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('avatar')

In this case, the header_image state could contain posts/header-images/4281246003439.jpg, which is relative to the root directory of the storage disk. The storage disk is defined in the configuration file, public by default. You can also set the FILESYSTEM_DISK environment variable to change this.

Alternatively, the state could contain an absolute URL to an image, such as https://example.com/images/header.jpg.

Managing the image disk

The default storage disk is defined in the configuration file, public by default. You can also set the FILESYSTEM_DISK environment variable to change this. If you want to deviate from the default disk, you may pass a custom disk name to the disk() method:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('header_image')
    ->disk('s3')

As well as allowing a static value, the disk() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

Private images

Filament can generate temporary URLs to render private images, you may set the visibility() to private:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('header_image')
    ->visibility('private')

As well as allowing a static value, the visibility() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

Customizing the size

You may customize the image size by passing a imageWidth() and imageHeight(), or both with imageSize():

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('header_image')
    ->imageWidth(200)

ImageColumn::make('header_image')
    ->imageHeight(50)

ImageColumn::make('avatar')
    ->imageSize(40)

As well as allowing a static values, the imageWidth(), imageHeight() and imageSize() methods also accept functions to dynamically calculate them. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

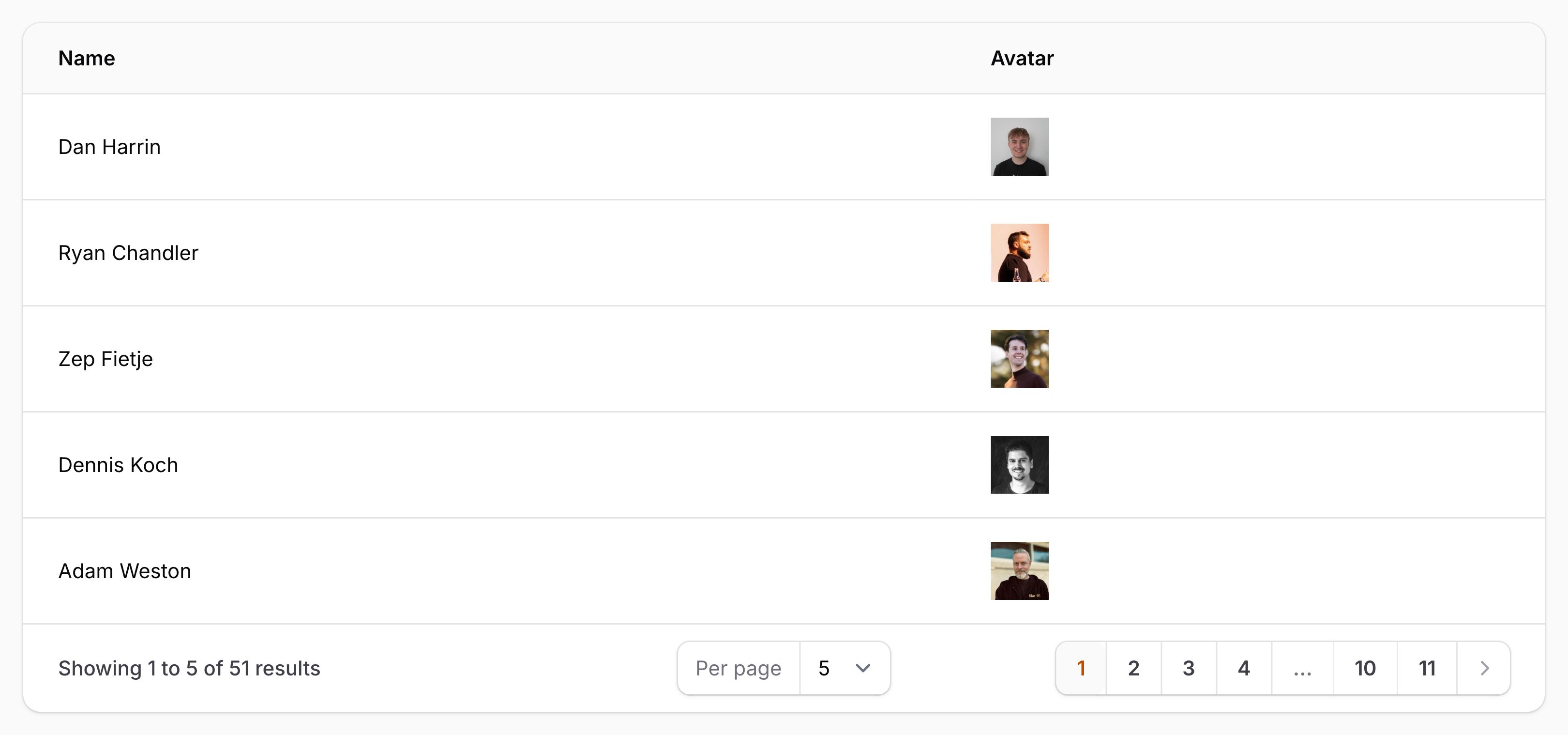

Square images

You may display the image using a 1:1 aspect ratio:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('avatar')
    ->imageHeight(40)
    ->square()

Optionally, you may pass a boolean value to control if the image should be square or not:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('avatar')
    ->imageHeight(40)
    ->square(FeatureFlag::active())

As well as allowing a static value, the square() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

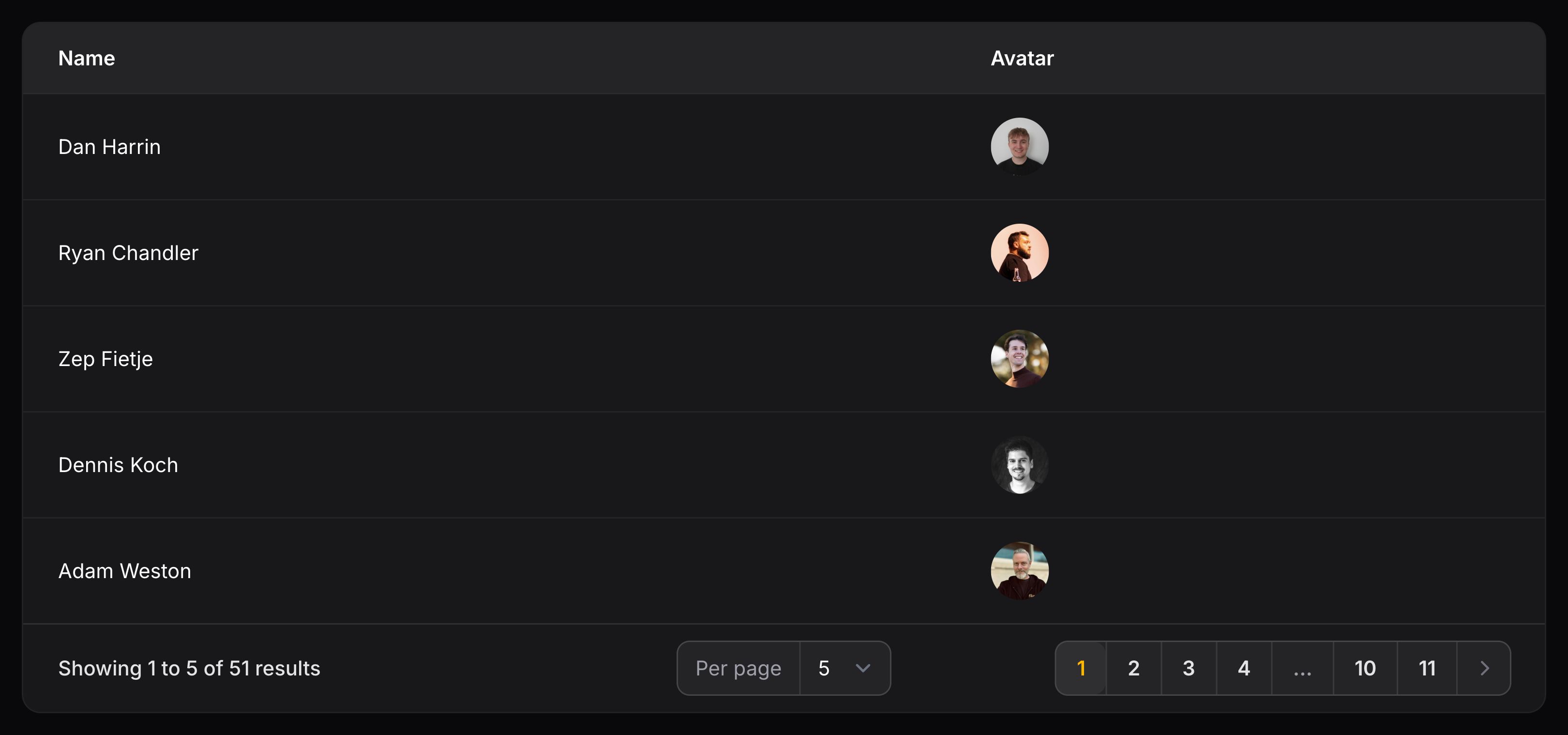

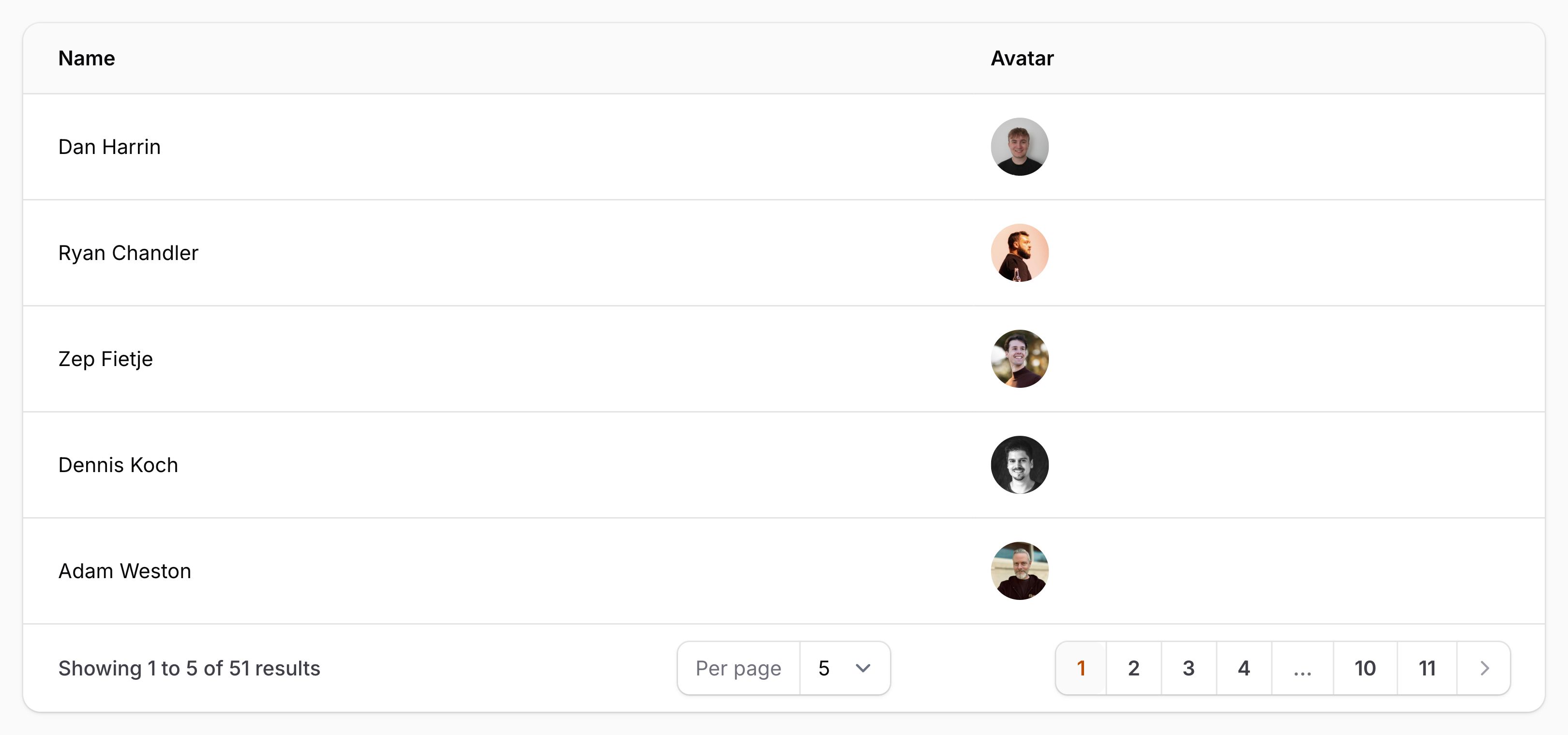

Circular images

You may make the image fully rounded, which is useful for rendering avatars:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('avatar')
    ->imageHeight(40)
    ->circular()

Optionally, you may pass a boolean value to control if the image should be circular or not:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('avatar')
    ->imageHeight(40)
    ->circular(FeatureFlag::active())

As well as allowing a static value, the circular() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

Adding a default image URL

You can display a placeholder image if one doesn’t exist yet, by passing a URL to the defaultImageUrl() method:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('header_image')
    ->defaultImageUrl(url('storage/posts/header-images/default.jpg'))

As well as allowing a static value, the defaultImageUrl() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

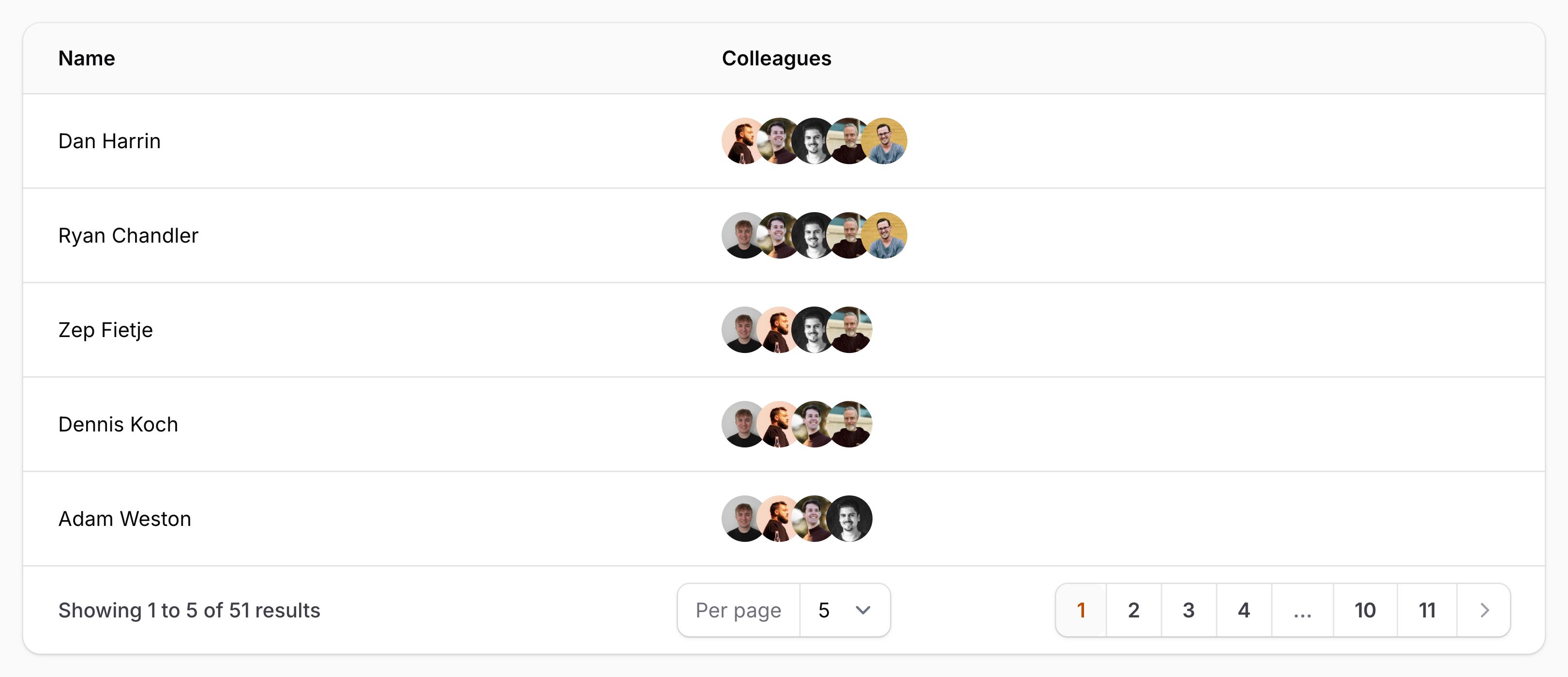

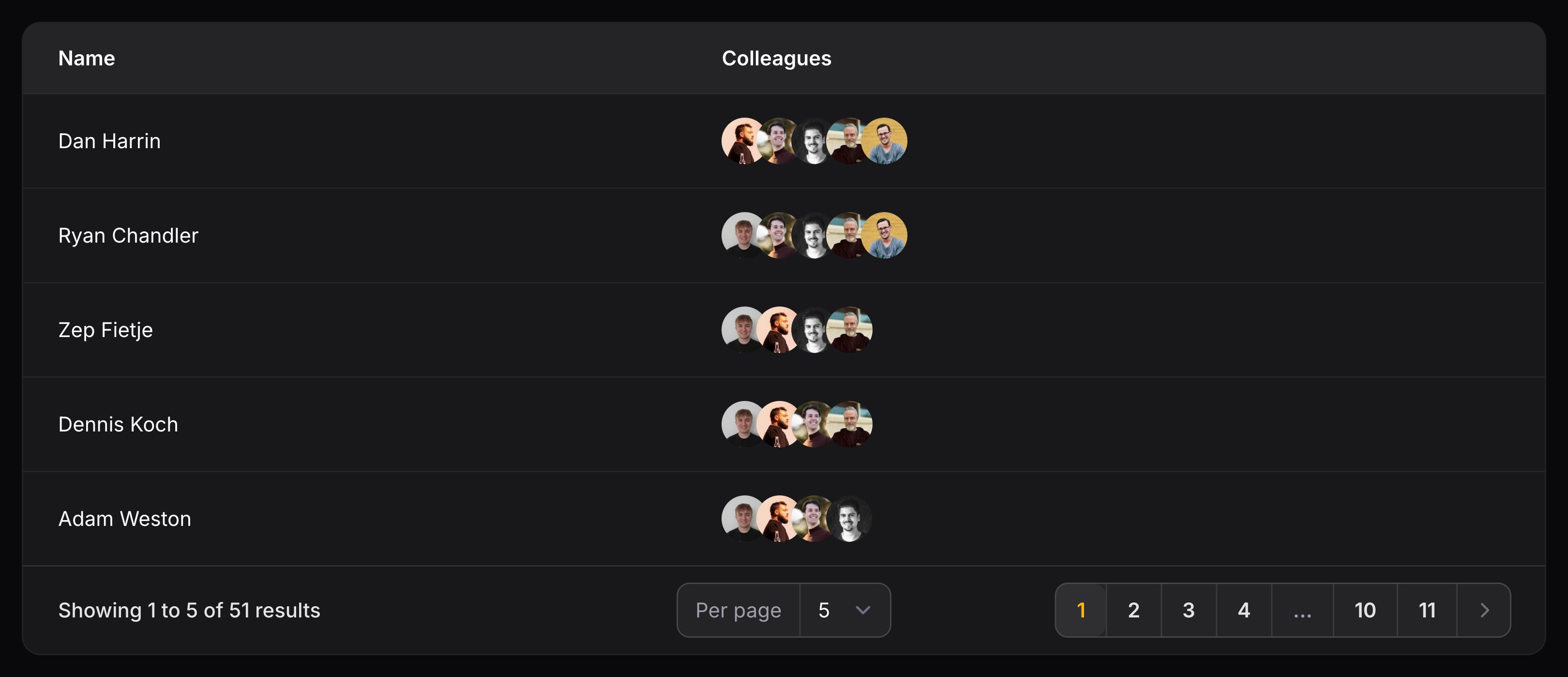

Stacking images

You may display multiple images as a stack of overlapping images by using stacked():

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('colleagues.avatar')
    ->imageHeight(40)
    ->circular()
    ->stacked()

Optionally, you may pass a boolean value to control if the images should be stacked or not:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('colleagues.avatar')
    ->imageHeight(40)
    ->circular()
    ->stacked(FeatureFlag::active())

As well as allowing a static value, the stacked() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

Customizing the stacked ring width

The default ring width is 3, but you may customize it to be from 0 to 8:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('colleagues.avatar')
    ->imageHeight(40)
    ->circular()
    ->stacked()
    ->ring(5)

As well as allowing a static value, the ring() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

Customizing the stacked overlap

The default overlap is 4, but you may customize it to be from 0 to 8:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('colleagues.avatar')
    ->imageHeight(40)
    ->circular()
    ->stacked()
    ->overlap(2)

As well as allowing a static value, the overlap() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

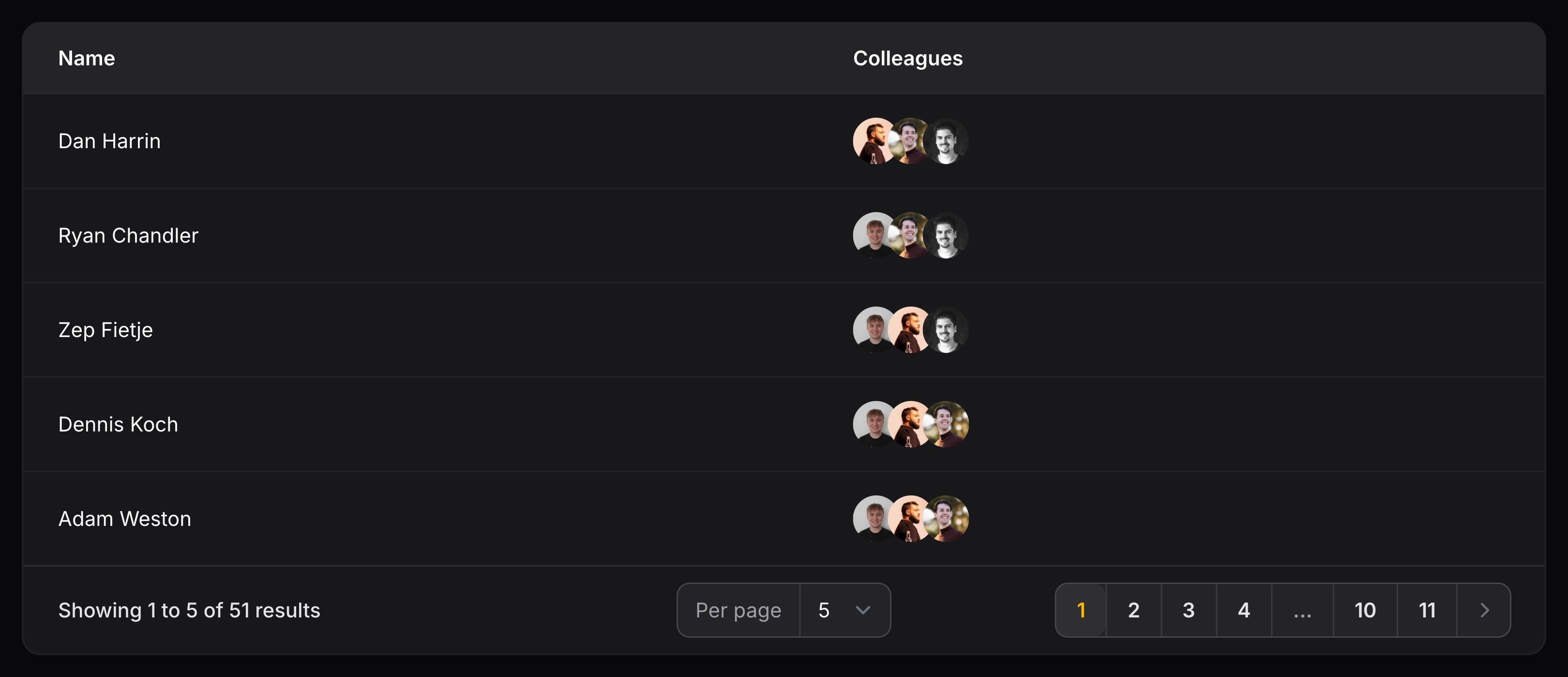

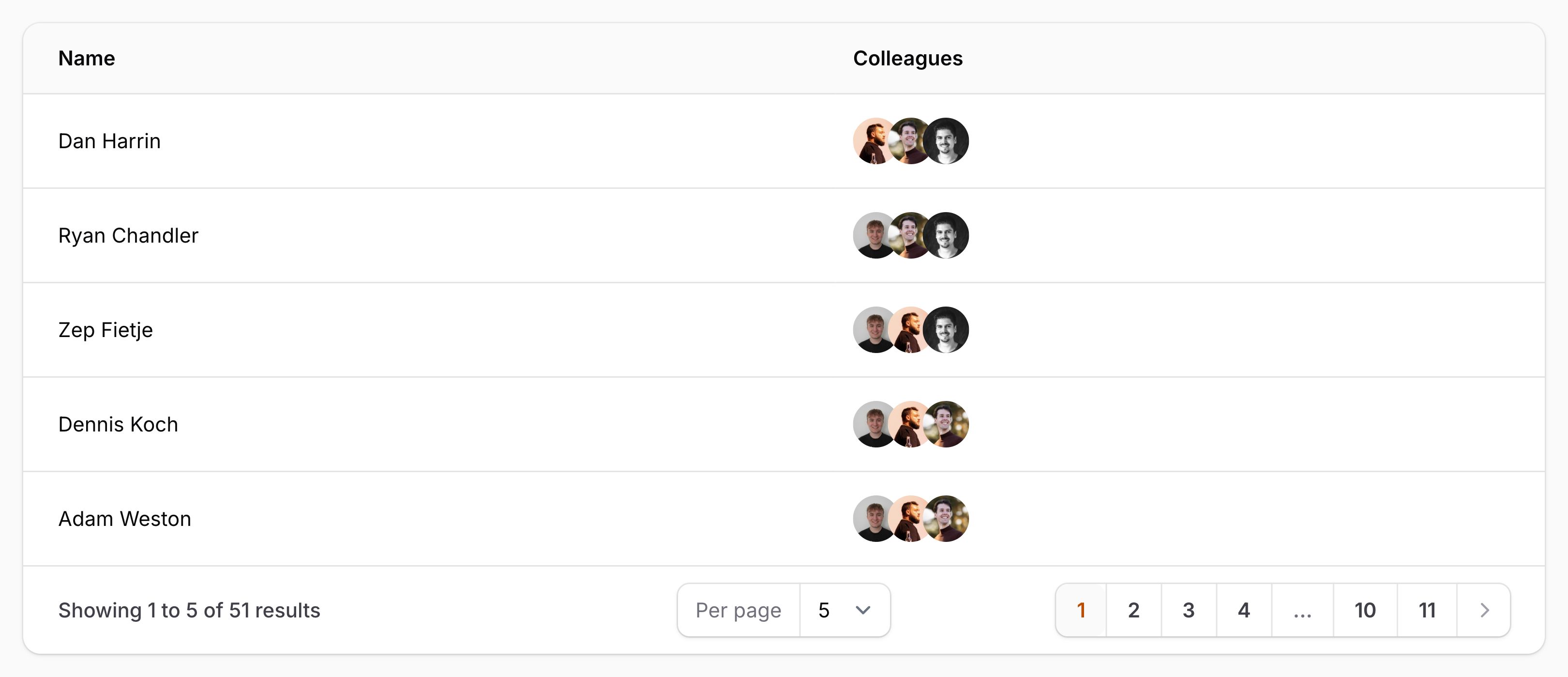

Setting a limit

You may limit the maximum number of images you want to display by passing limit():

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('colleagues.avatar')
    ->imageHeight(40)
    ->circular()
    ->stacked()
    ->limit(3)

As well as allowing a static value, the limit() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

Showing the remaining images count

When you set a limit you may also display the count of remaining images by passing limitedRemainingText().

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('colleagues.avatar')
    ->imageHeight(40)
    ->circular()
    ->stacked()
    ->limit(3)
    ->limitedRemainingText()

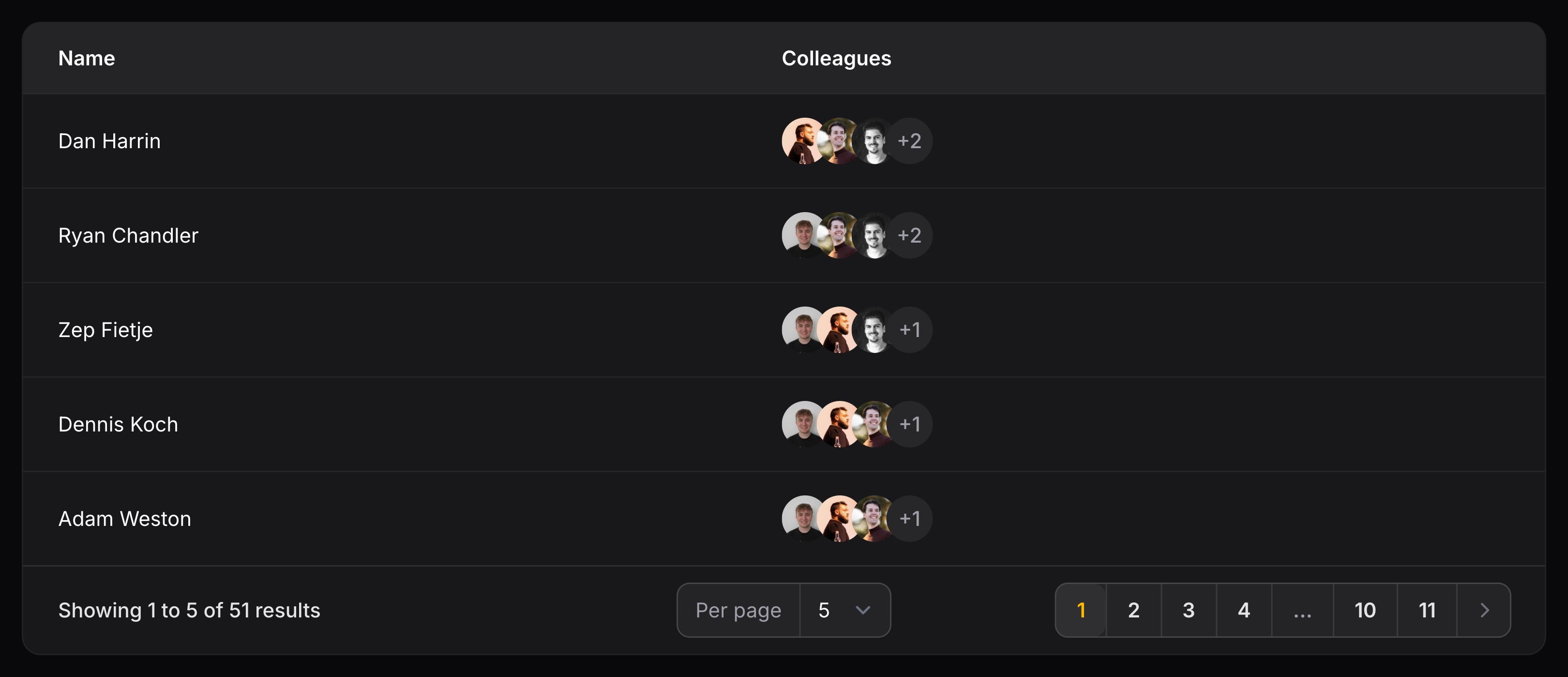

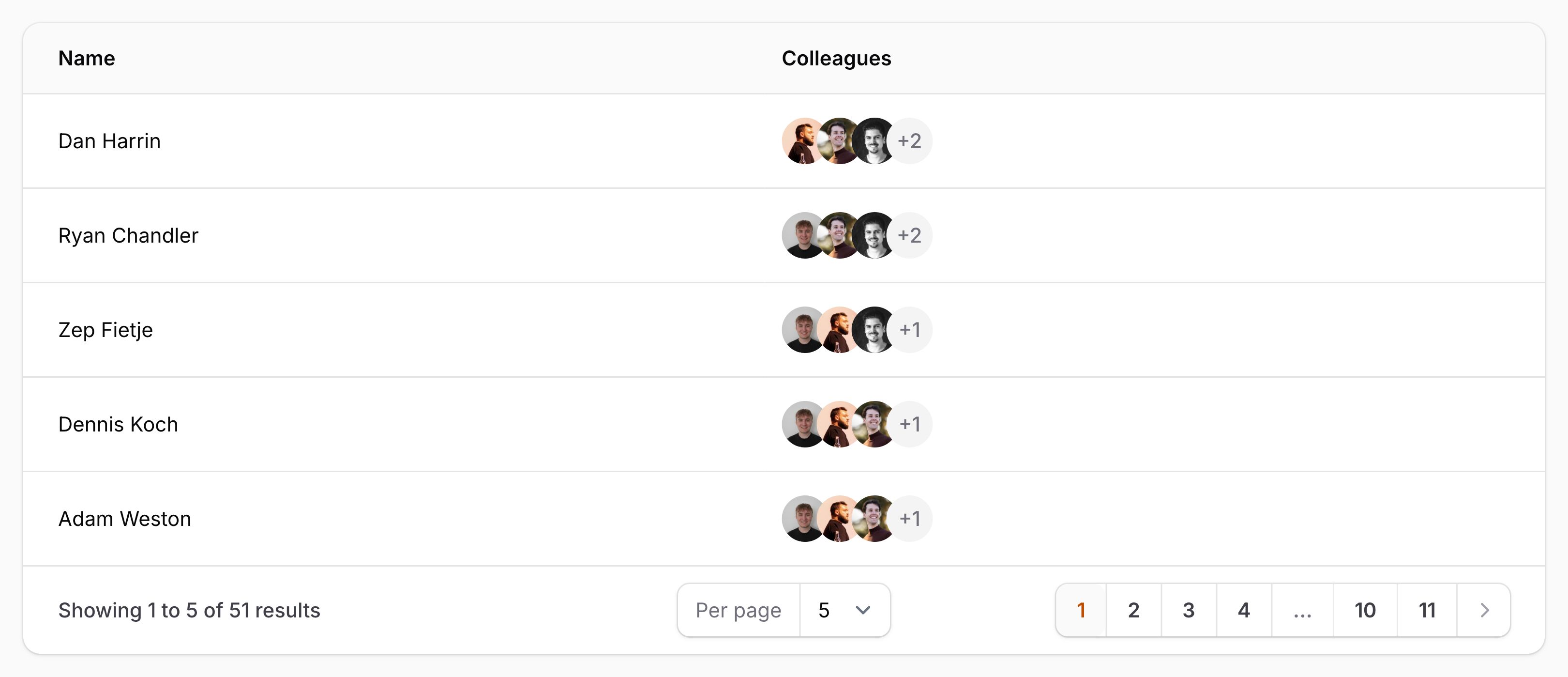

Limited image column with remaining text

Optionally, you may pass a boolean value to control if the remaining text should be displayed or not:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('colleagues.avatar')
    ->imageHeight(40)
    ->circular()
    ->stacked()
    ->limit(3)
    ->limitedRemainingText(FeatureFlag::active())

As well as allowing a static value, the limitedRemainingText() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

Customizing the limited remaining text size

By default, the size of the remaining text is TextSize::Small. You can customize this to be TextSize::ExtraSmall, TextSize::Medium or TextSize::Large using the size parameter:

use Filament\Tables\Columns\ImageColumn;
use Filament\Support\Enums\TextSize;

ImageColumn::make('colleagues.avatar')
    ->imageHeight(40)
    ->circular()
    ->stacked()
    ->limit(3)
    ->limitedRemainingText(size: TextSize::Large)

As well as allowing a static value, the limitedRemainingText() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

Prevent file existence checks

When the schema is loaded, it will automatically detect whether the images exist to prevent errors for missing files. This is all done on the backend. When using remote storage with many images, this can be time-consuming. You can use the checkFileExistence(false) method to disable this feature:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('attachment')
    ->checkFileExistence(false)

As well as allowing a static value, the checkFileExistence() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

Wrapping multiple images

Images can be set to wrap if they can’t fit on one line, by setting wrap():

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('colleagues.avatar')
    ->circular()
    ->stacked()
    ->wrap()

TIP

The “width” for wrapping is affected by the column label, so you may need to use a shorter or hidden label to wrap more tightly.

Adding extra HTML attributes to the image

You can pass extra HTML attributes to the <img> element via the extraImgAttributes() method. The attributes should be represented by an array, where the key is the attribute name and the value is the attribute value:

use Filament\Tables\Columns\ImageColumn;

ImageColumn::make('logo')
    ->extraImgAttributes([
        'alt' => 'Logo',
        'loading' => 'lazy',
    ])

As well as allowing a static value, the extraImgAttributes() method also accepts a function to dynamically calculate it. You can inject various utilities into the function as parameters.

Learn more about utility injection.

Utility	Type	Parameter	Description
Column	`Filament\Tables\Columns\Column`	`$column`	The current column instance.
Livewire	`Livewire\Component`	`$livewire`	The Livewire component instance.
Eloquent record	`?Illuminate\Database\Eloquent\Model`	`$record`	The Eloquent record for the current table row.
Row loop	`stdClass`	`$rowLoop`	The row loop object for the current table row.
State	`mixed`	`$state`	The current value of the column, based on the current table row.
Table	`Filament\Tables\Table`	`$table`	The current table instance.

By default, calling extraImgAttributes() multiple times will overwrite the previous attributes. If you wish to merge the attributes instead, you can pass merge: true to the method.

Edit on GitHub

Still need help? Join our Discord community or open a GitHub discussion

#Introduction

#Managing the image disk

#Private images

#Customizing the size

#Square images

#Circular images

#Adding a default image URL

#Stacking images

#Customizing the stacked ring width

#Customizing the stacked overlap

#Setting a limit

#Showing the remaining images count

#Customizing the limited remaining text size

#Prevent file existence checks

#Wrapping multiple images

#Adding extra HTML attributes to the image

Introduction

Managing the image disk

Private images

Customizing the size

Square images

Circular images

Adding a default image URL

Stacking images

Customizing the stacked ring width

Customizing the stacked overlap

Setting a limit

Showing the remaining images count

Customizing the limited remaining text size

Prevent file existence checks

Wrapping multiple images

Adding extra HTML attributes to the image
